Hi
here is my best yaml setting for iventoy using mcvlan network

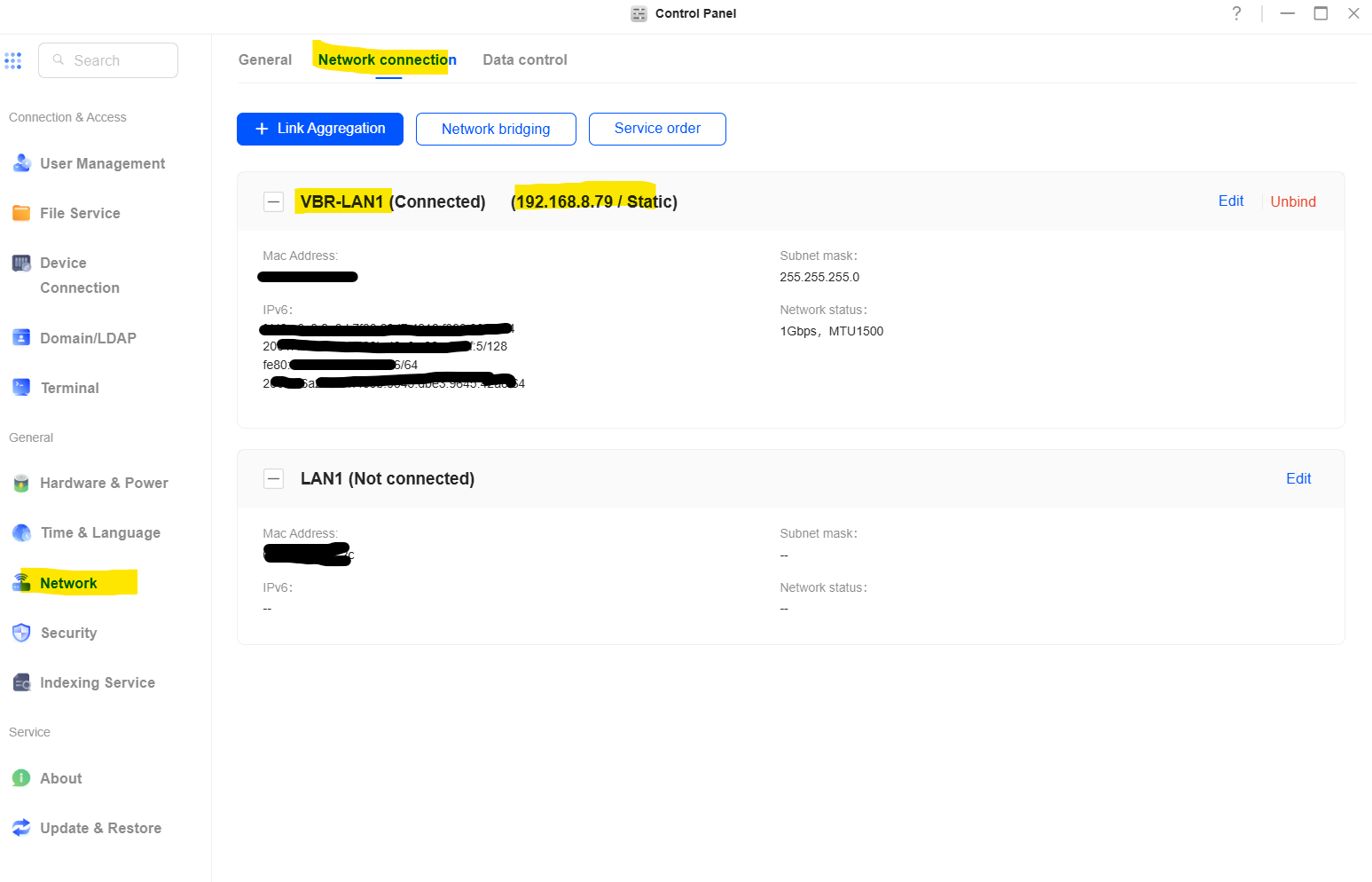

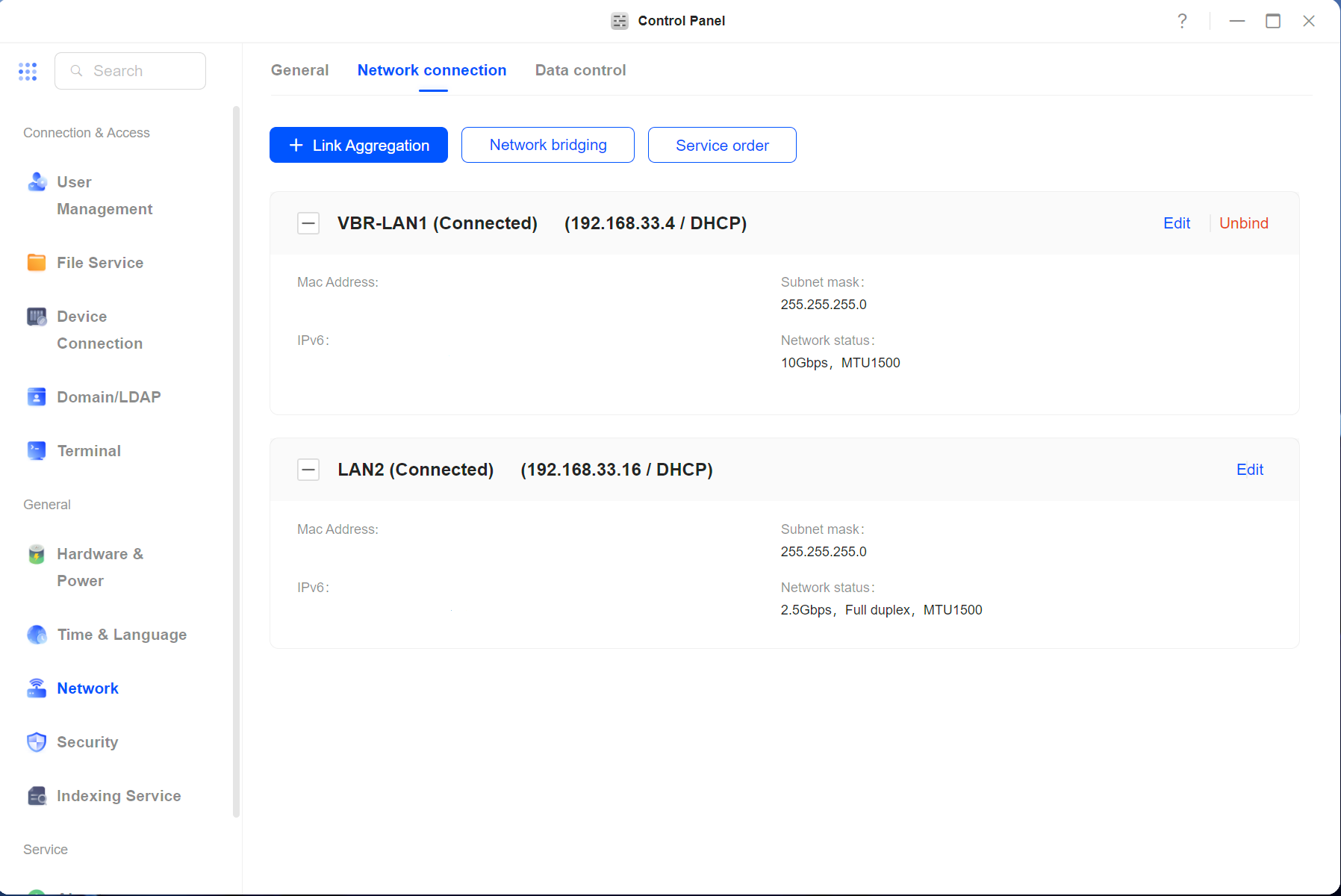

1 - network connection LAN should be VBR mode as shown in pic

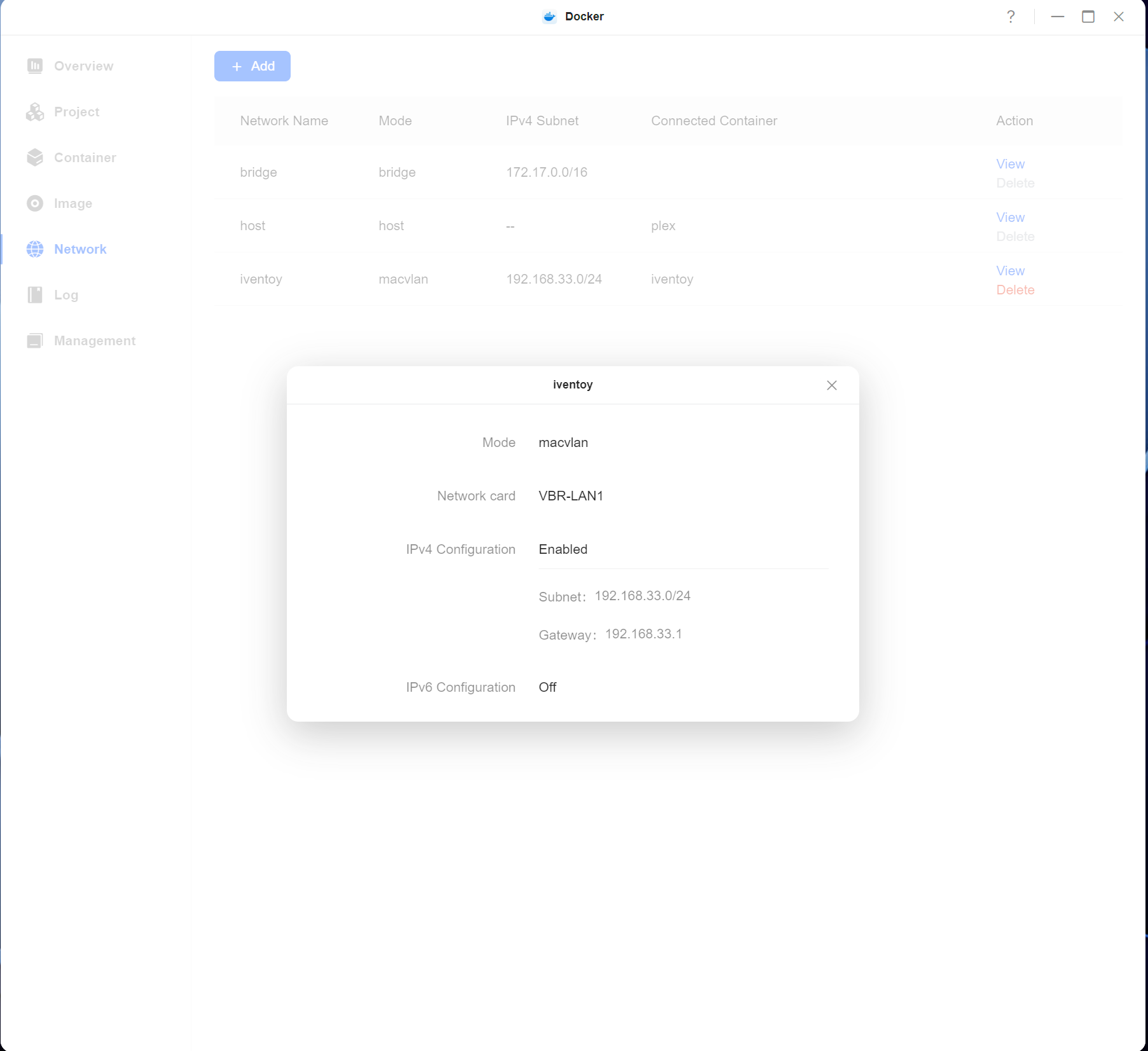

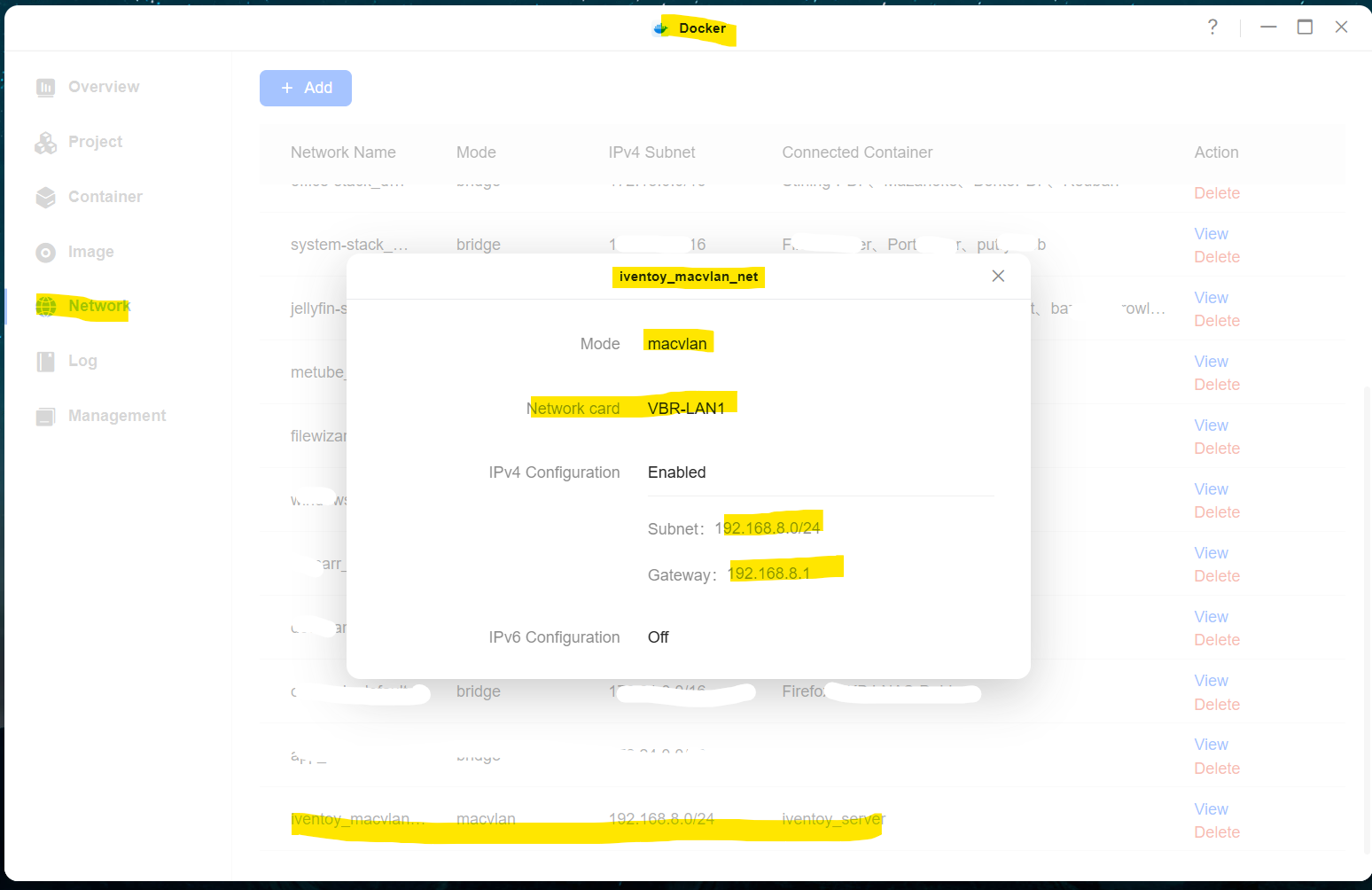

2 - create Mcvlan network as shown in pic
3- create folders as volumes in yaml

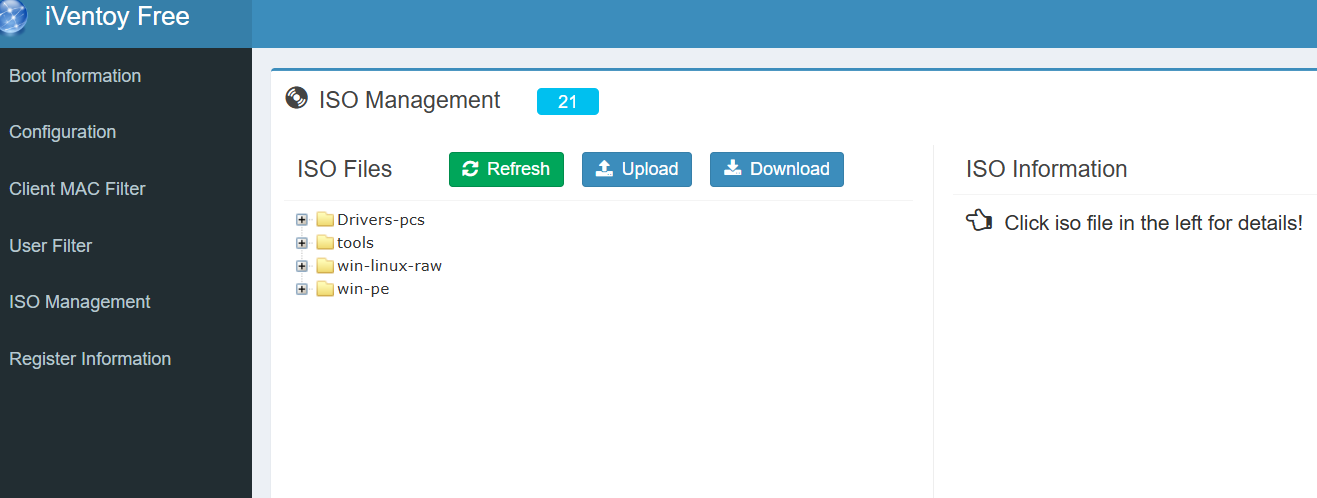

4- copy all iso in iso folder as yaml
-5 ** assign any IP that works with your network conf. and it should not the same as your nas IP

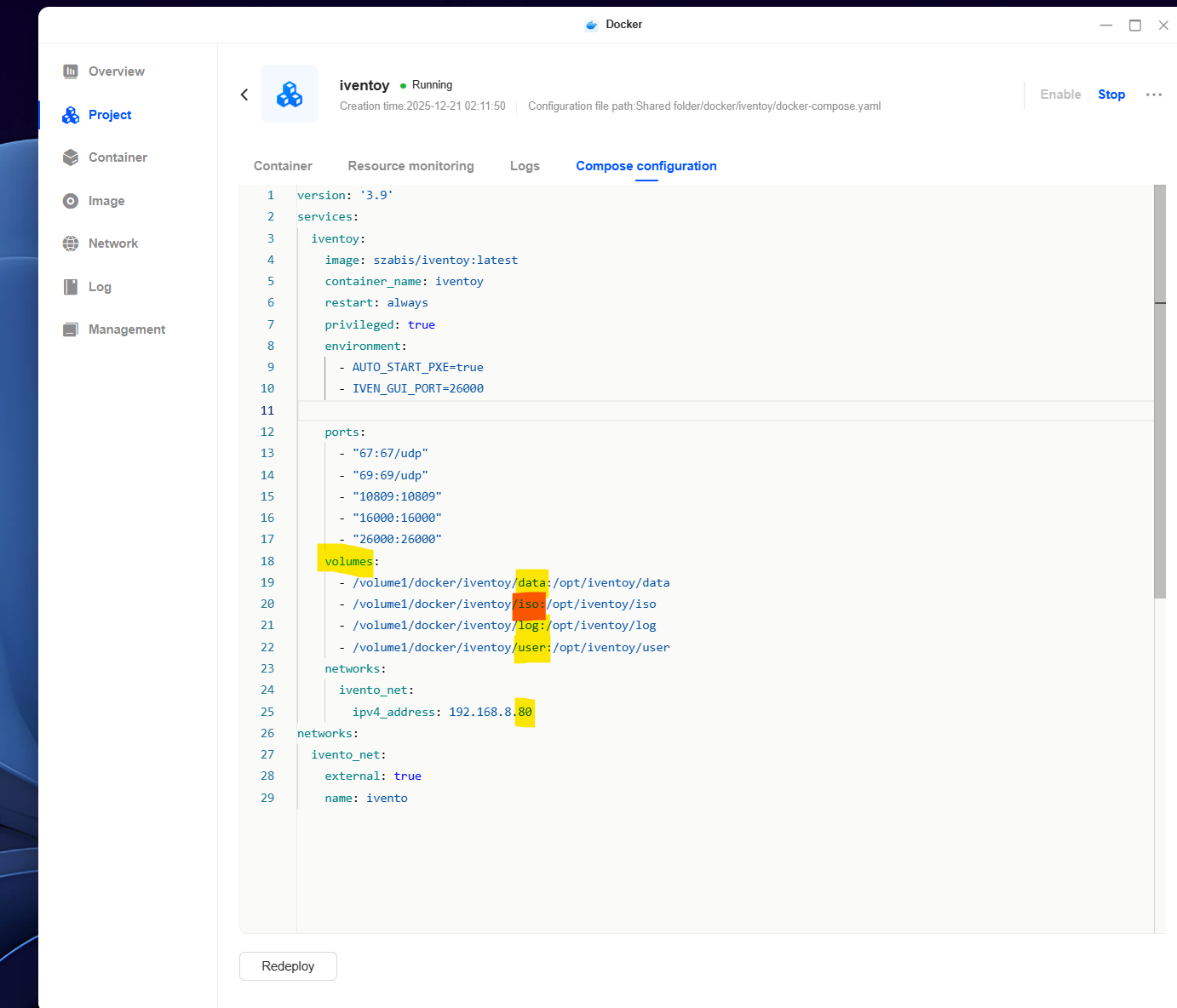

6- paste yaml in docker

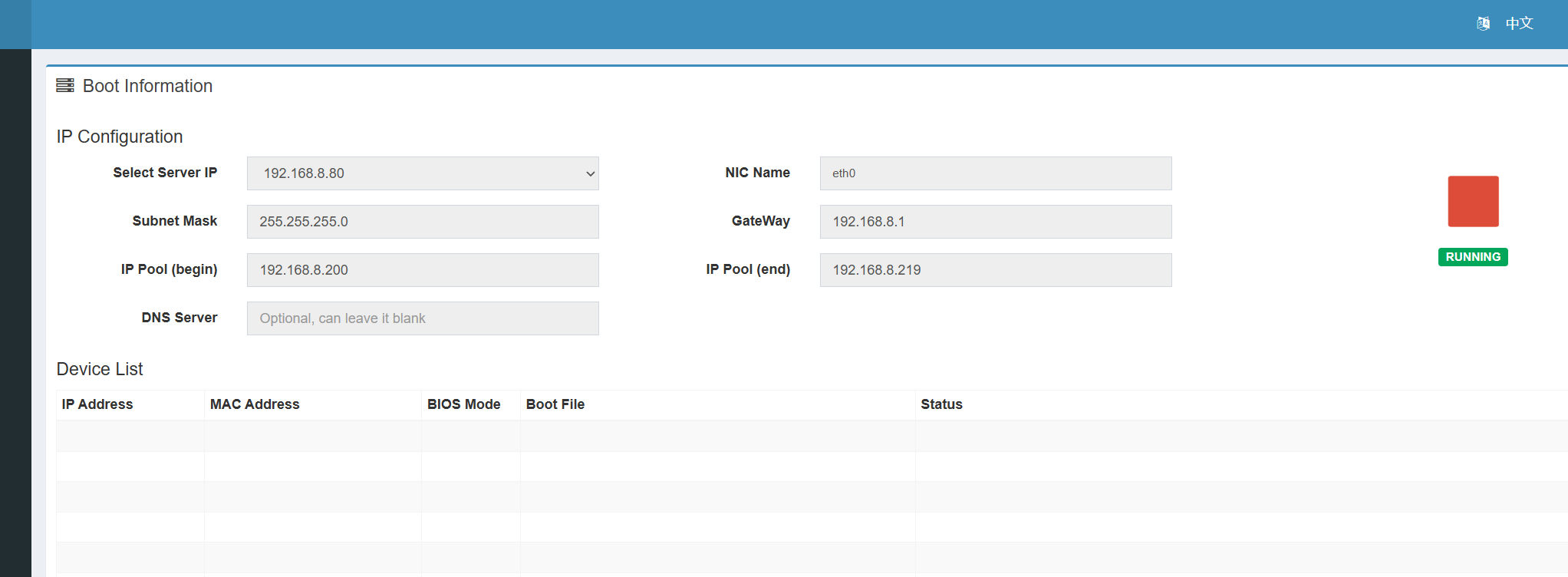

now u have working PXE in your network

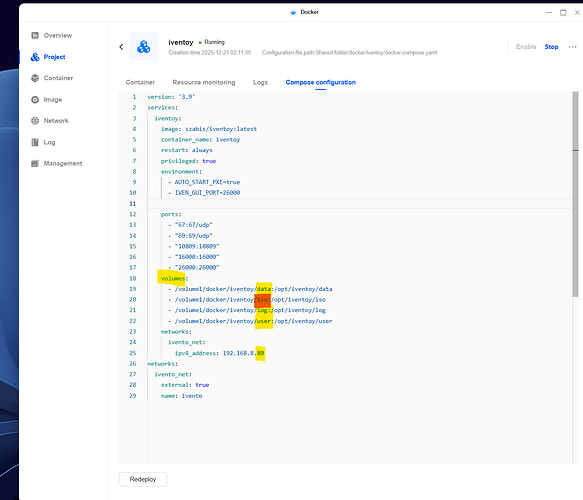

version: '3.9'
services:
iventoy:
image: szabis/iventoy:latest
container_name: iventoy
restart: always
privileged: true
environment:
- AUTO_START_PXE=true
- IVEN_GUI_PORT=26000
ports:
- "67:67/udp"
- "69:69/udp"
- "10809:10809"
- "16000:16000"
- "26000:26000"
volumes:
- /volume1/docker/iventoy/data:/opt/iventoy/data
- /volume1/docker/iventoy/iso:/opt/iventoy/iso #iso files
- /volume1/docker/iventoy/log:/opt/iventoy/log
- /volume1/docker/iventoy/user:/opt/iventoy/user
networks:
ivento_net: #the name of macvlan i created in docker network
ipv4_address: 192.168.8.80 # change it to the one you like but not same nas ip
networks:
ivento_net:
external: true
name: ivento
I had it working under the latest update, but foolishly didn’t have a back up of my docker compose, now it works until I press the the green play button, then it crashes saying service unavailable….
well I have managed to make it work again
and I think that because of the latest update of ugos or iventoy
i use this image : ziggyds
yaml:
services:
iventoy:
image: ziggyds/iventoy:latest
container_name: iventoy_server
restart: always
privileged: true
networks:
iventoy_macvlan:
ipv4_address: 192.168.8.80 #this will be the ip for iventoy you can change it to the one you need
environment:
- PUID=1000
- PGID=10
- TZ=Asia/Riyadh
- AUTO_START_PXE=true
volumes:
- /home/userKKKK/PC/iso:/app/iso #you can link to isos locations as you need
- iventoy_data:/app/data
- /volume1/docker/iventoy/log:/app/log
volumes:
iventoy_data:
name: iventoy_nas_data
networks:
iventoy_macvlan: #here you should make mcvlan in docker network setting before start the service
name: iventoy_macvlan_net
driver: macvlan
driver_opts:
parent: bridge0
ipam:
config:
- subnet: 192.168.8.0/24
gateway: 192.168.8.1

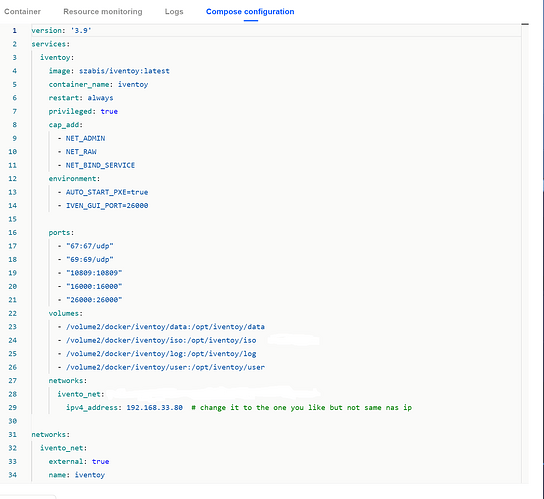

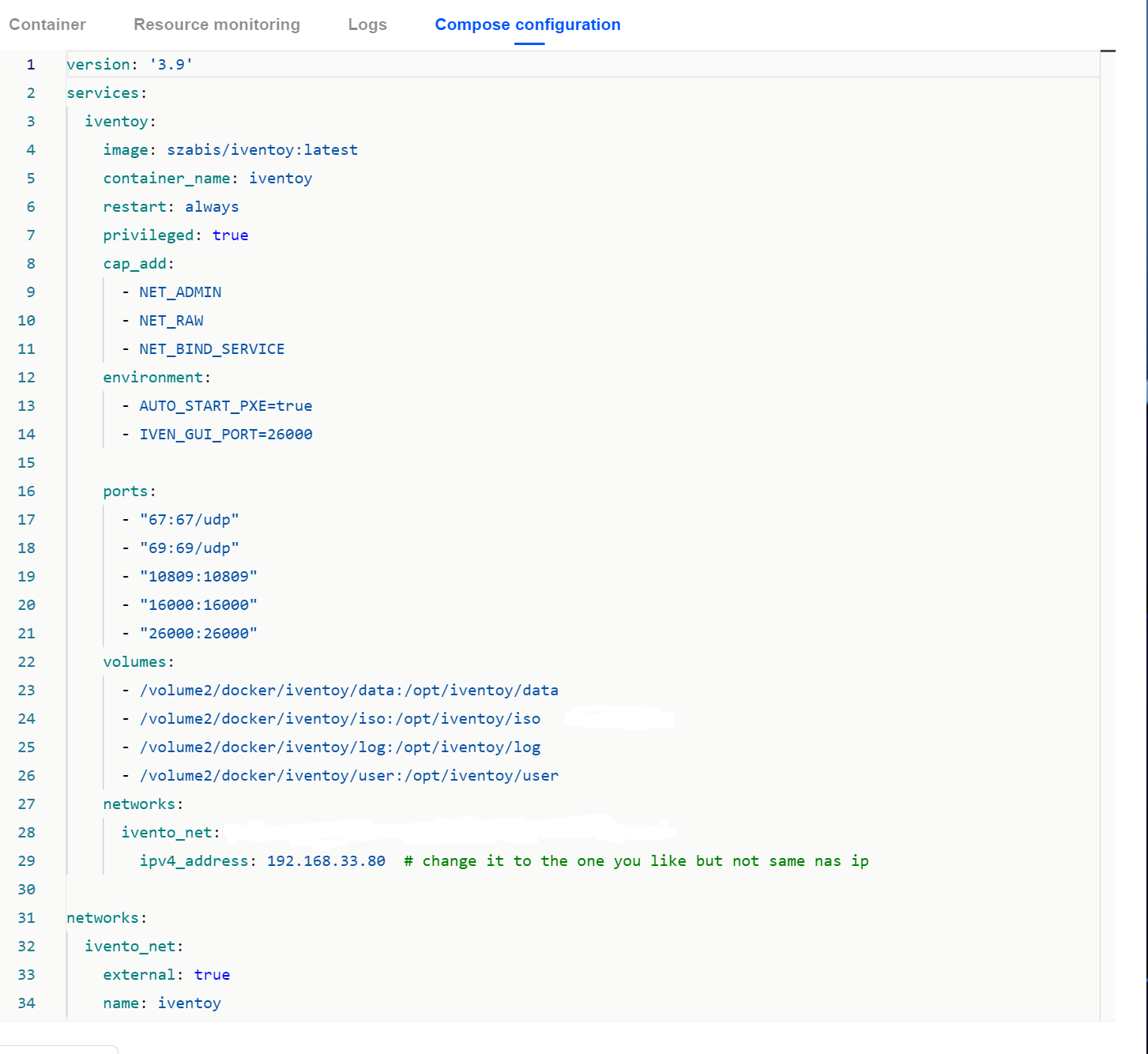

Finally got this working using the following compose file…
version: ‘3.9’
services:
iventoy:
image: szabis/iventoy:latest
container_name: iventoy
restart: always
privileged: true
cap_add:
- NET_ADMIN
- NET_RAW
- NET_BIND_SERVICE
environment:
- AUTO_START_PXE=true
- IVEN_GUI_PORT=26000
ports:
- "67:67/udp"
- "69:69/udp"
- "10809:10809"
- "16000:16000"
- "26000:26000"
volumes:
- /volume2/docker/iventoy/data:/opt/iventoy/data
- /volume2/docker/iventoy/iso:/opt/iventoy/iso #iso files
- /volume2/docker/iventoy/log:/opt/iventoy/log
- /volume2/docker/iventoy/user:/opt/iventoy/user

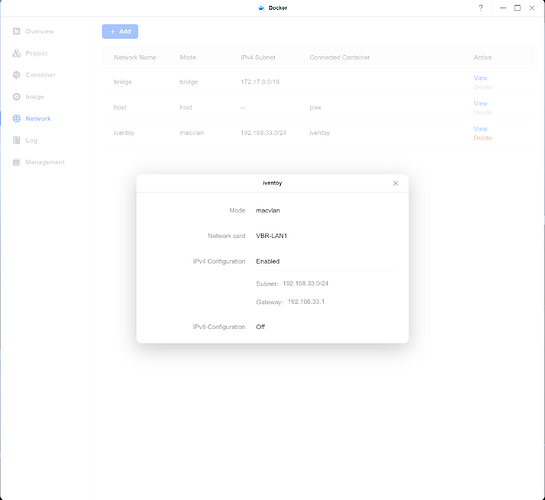

networks:
ivento_net: #the name of macvlan i created in docker network
ipv4_address: 192.168.33.80 # change it to the one you like but not same nas ip
